Manim Community v0.18.0

ICircle

Internally the library uses these objects to work, these objects are used to obtain intersections and auxiliary objects to make animations.

Intersections

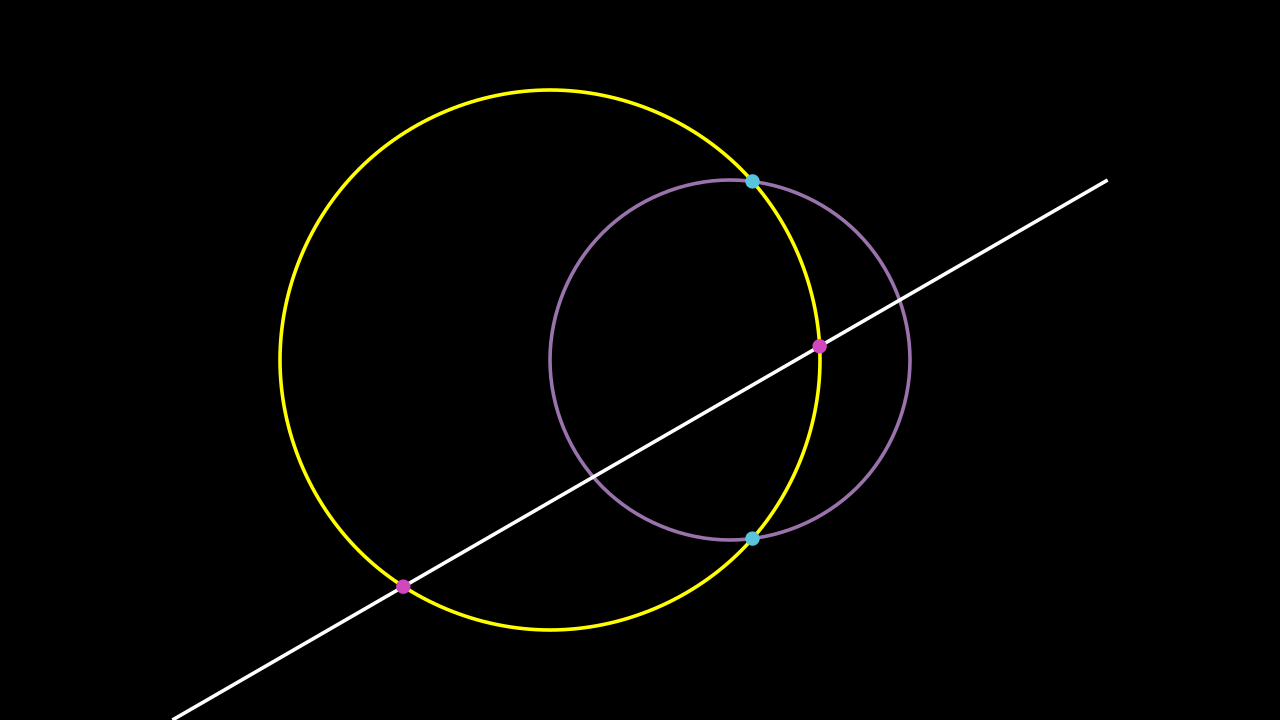

class ExampleIntersections(Scene):
  def construct(self):
    c1 = ICircle(3, YELLOW).shift(LEFT)
    c2 = ICircle(2, PURPLE).shift(RIGHT)
    l  = Line(LEFT*6, RIGHT*6).shift(DOWN).rotate(30*DEGREES)

    ci1, ci2 = c1.intersection_circle(c2)
    li1, li2 = c1.intersection_line(l)
    ci = VGroup(Dot(ci1), Dot(ci2)).set_color(BLUE)
    li = VGroup(Dot(li1), Dot(li2)).set_color(PINK)

    self.add(c1, c2, l)
    self.add(ci, li)

%manim $_RV ExampleIntersections

Common chord partial

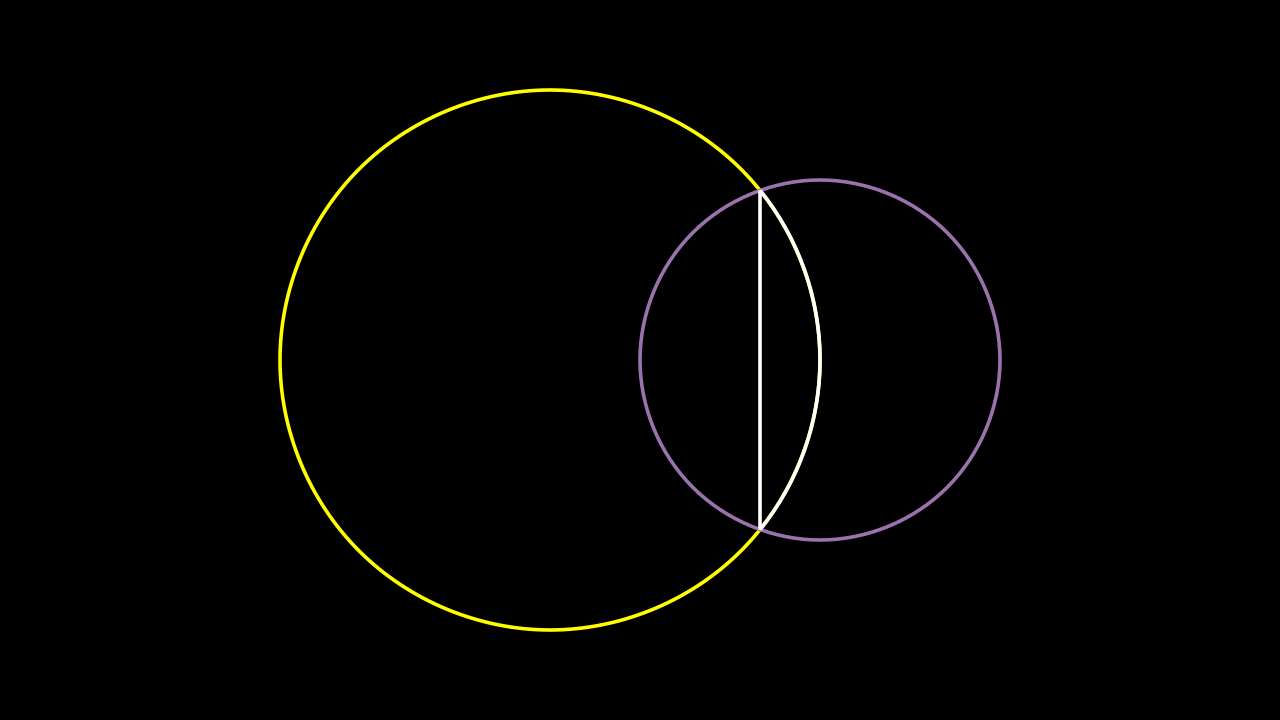

class ExampleCommonChord(Scene):
  def construct(self):
    c1 = ICircle(3, YELLOW).shift(LEFT)
    c2 = ICircle(2, PURPLE).shift(RIGHT*2)

    common_chord = c1.common_chord_group_partial(c2)

    self.add(c1, c2, common_chord)

%manim $_RV ExampleCommonChord

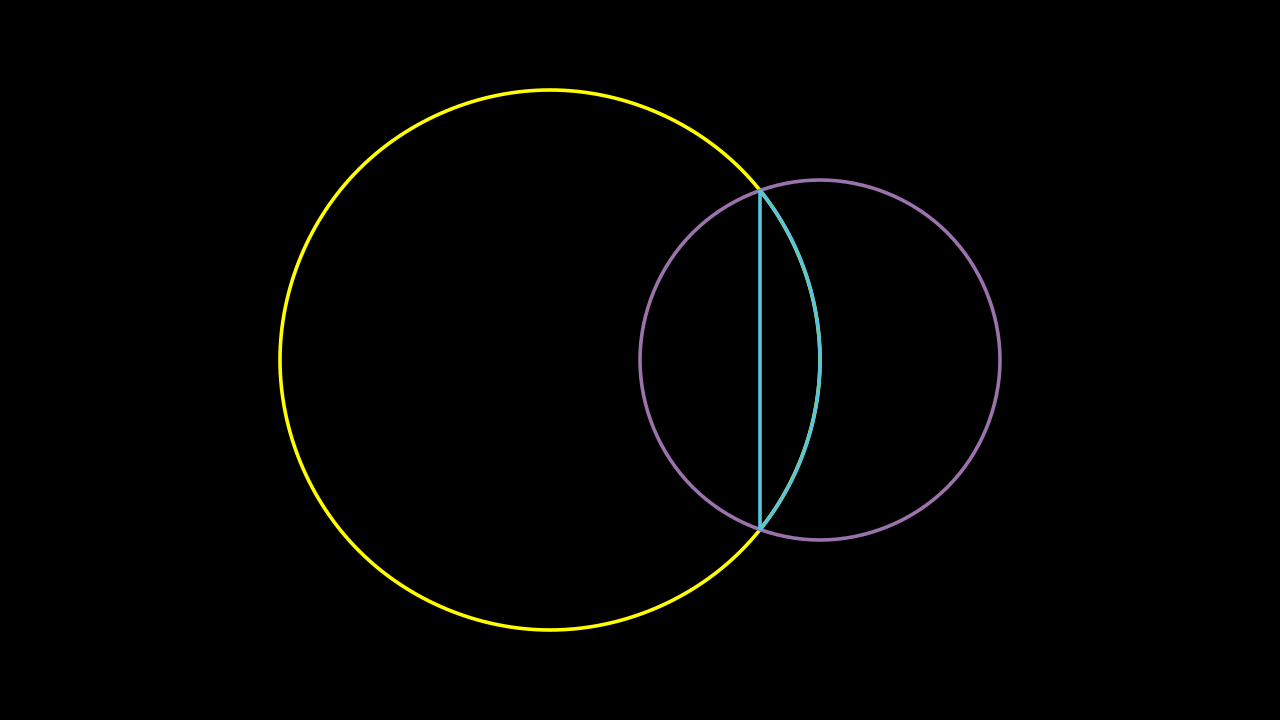

class ExampleCommonChord(Scene):
  def construct(self):
    c1 = ICircle(3, YELLOW).shift(LEFT)
    c2 = ICircle(2, PURPLE).shift(RIGHT*2)

    common_chord = c1.common_chord_group_partial(c2, color=BLUE)

    self.add(c1, c2, common_chord)

%manim $_RV ExampleCommonChord

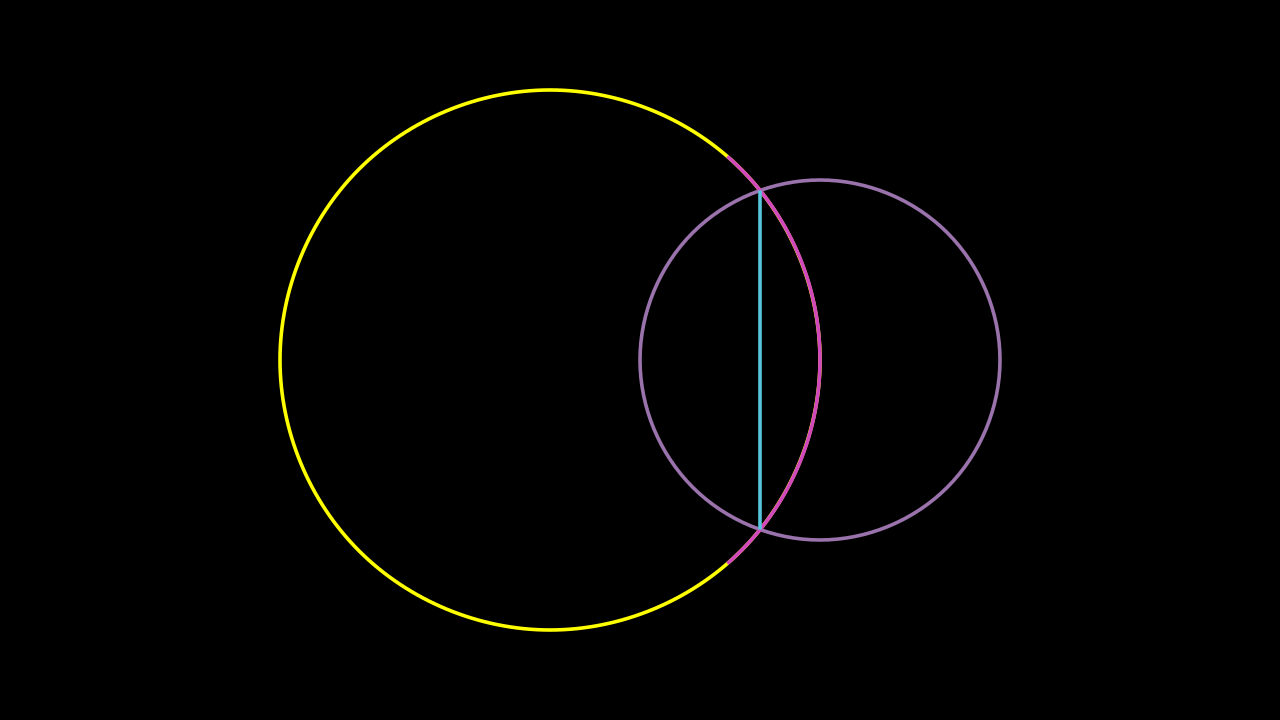

class ExampleCommonChord(Scene):
  def construct(self):
    c1 = ICircle(3, YELLOW).shift(LEFT)
    c2 = ICircle(2, PURPLE).shift(RIGHT*2)

    common_chord_arc = c1.common_chord_group_partial(c2, only_arc=True, overshot_ang=10*DEGREES)\
      .set_color(PINK)
    common_chord_line = c1.common_chord_group_partial(c2, only_line=True)\
      .set_color(BLUE)


    self.add(c1, c2, common_chord_arc, common_chord_line)

%manim $_RV ExampleCommonChord

Common chord complete

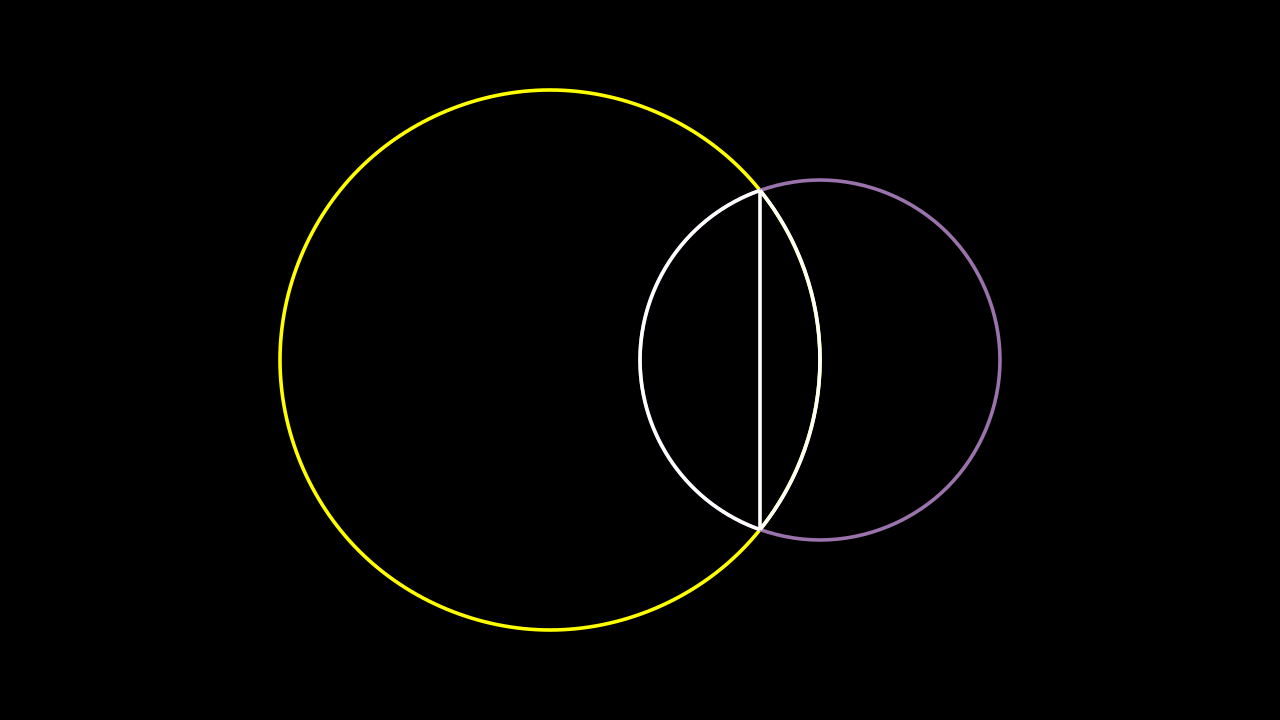

class ExampleLineBisector(Scene):
  def construct(self):
    c1 = ICircle(3, YELLOW).shift(LEFT)
    c2 = ICircle(2, PURPLE).shift(RIGHT*2)

    line_bisector = c1.common_chord_group(c2)
    self.add(c1, c2, line_bisector)

%manim $_RV ExampleLineBisector

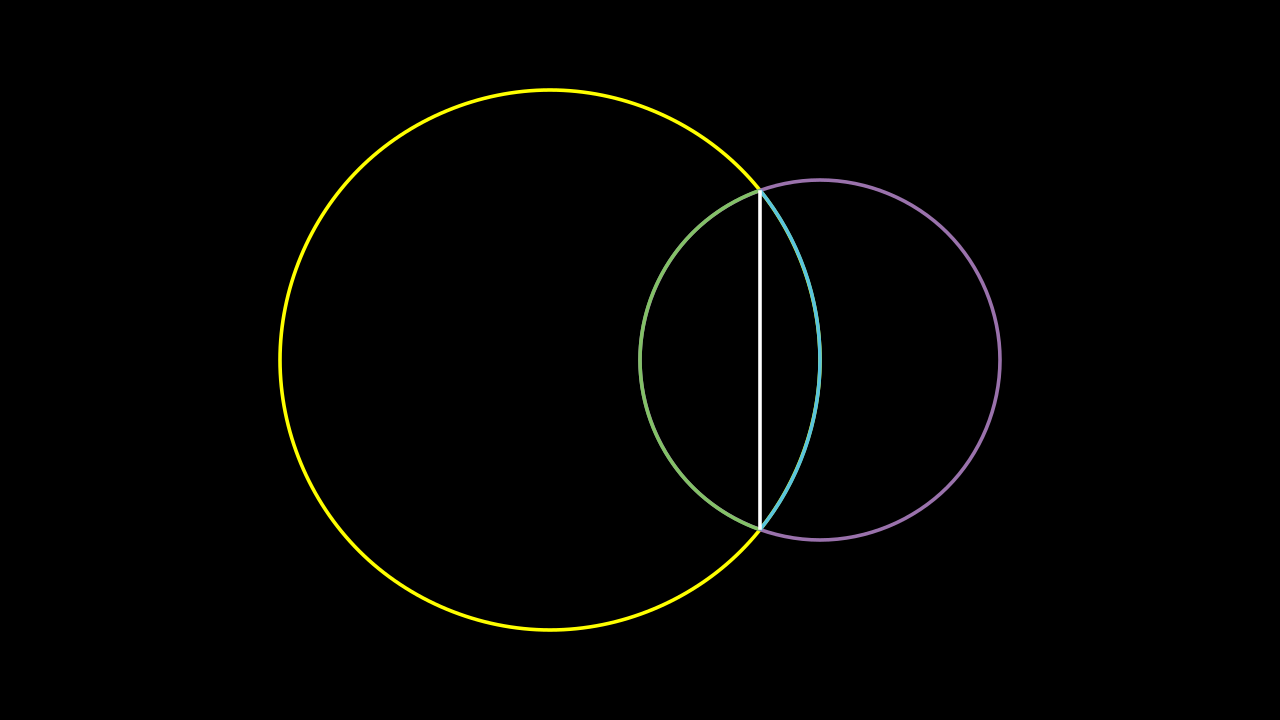

class ExampleLineBisector(Scene):
  def construct(self):
    c1 = ICircle(3, YELLOW).shift(LEFT)
    c2 = ICircle(2, PURPLE).shift(RIGHT*2)

    arc1, arc2 = c1.common_chord_group(c2, only_arcs=True)
    arc1.set_color(BLUE)
    arc2.set_color(GREEN)

    line = c1.common_chord_group(c2, only_line=True)

    self.add(c1, c2, arc1, arc2, line)

%manim $_RV ExampleLineBisector

Angle bisector

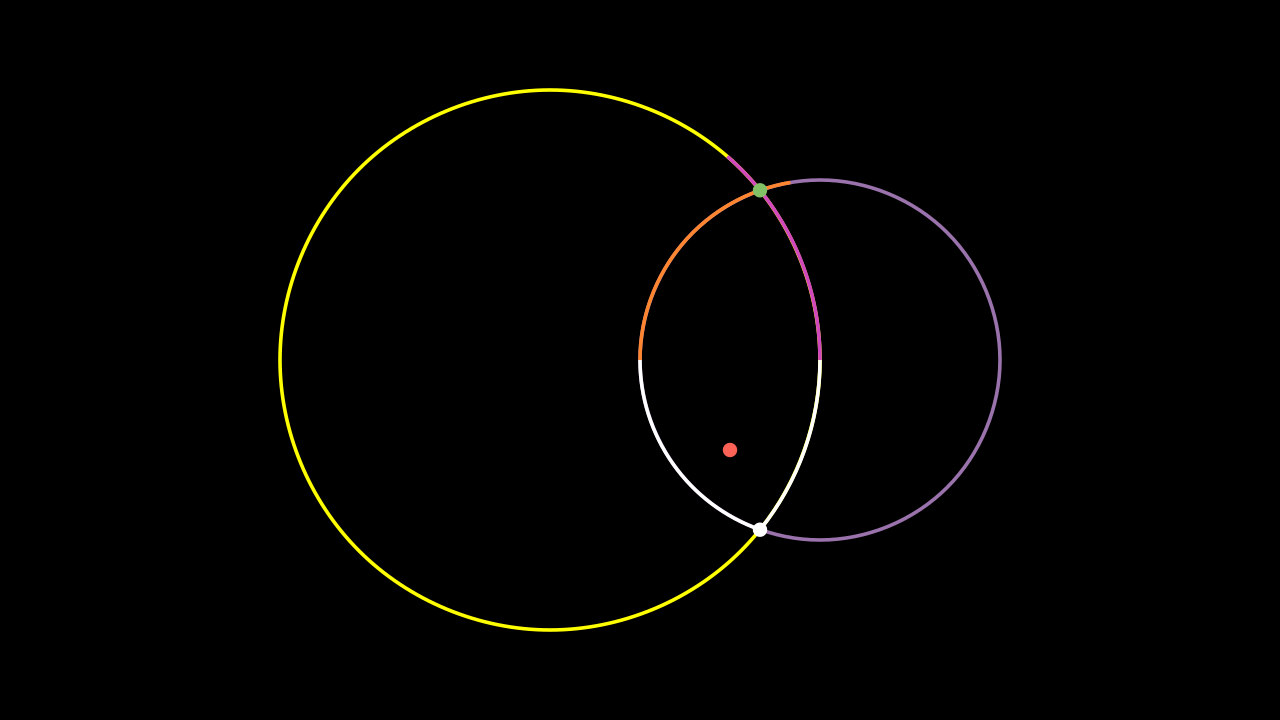

class ExampleAngleBisector(Scene):
  def construct(self):
    c1 = ICircle(3, YELLOW).shift(LEFT)
    c2 = ICircle(2, PURPLE).shift(RIGHT*2)

    d_red = Dot(DOWN+RIGHT, color=RED)
    ref_coord = d_red.get_center()

    arc1, arc2, d = grp1 = c1.farthest_angle_bisector_group(
      c2, ref_coord, overshot_ang=10*DEGREES
    )
    arc1.set_color(PINK)
    arc2.set_color(ORANGE)
    d.set_color(GREEN)

    grp2 = c2.nearest_angle_bisector_group(
      c1, ref_coord, overshot_ang=0*DEGREES
    )

    self.add(c1, c2)
    self.add(d_red)
    self.add(grp1, grp2)

%manim $_RV ExampleAngleBisector

Practical example: Draw hexagon

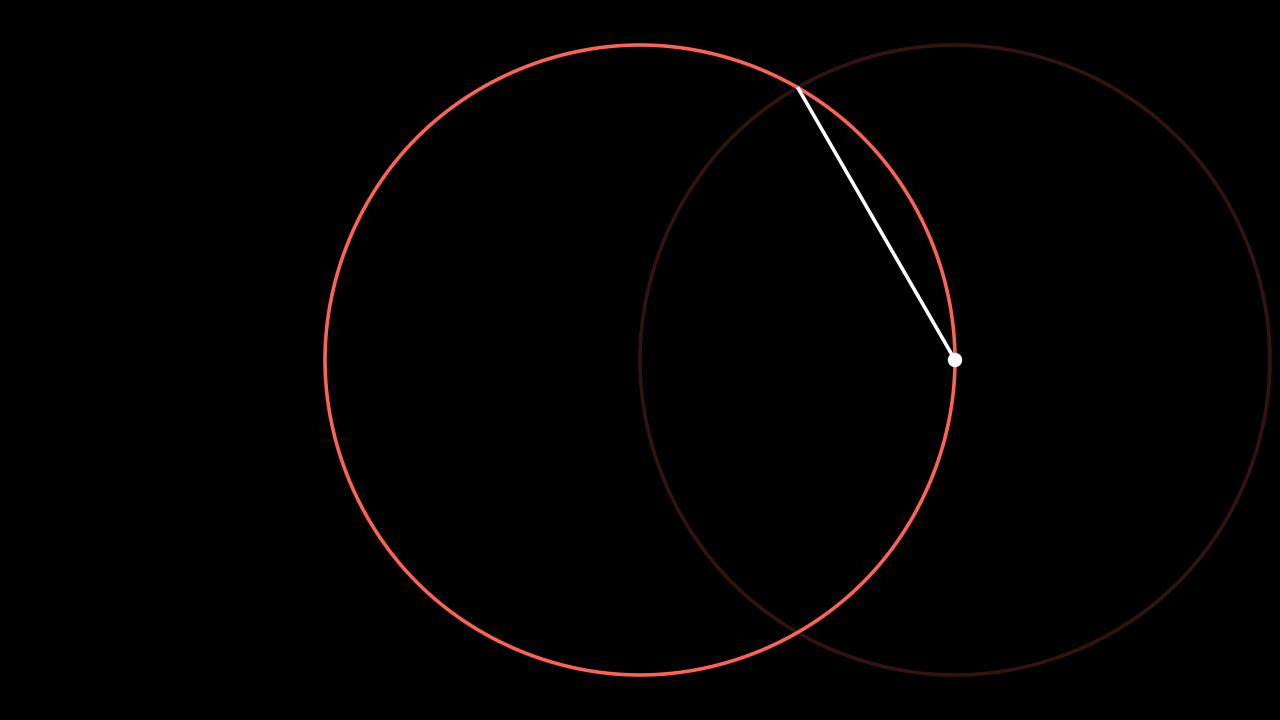

class PracticalExample1(Scene):
  def setup(self):
    c = ICircle(3.5)
    c2 = c.copy().move_to(c.get_right())
    c2.fade(0.8)
    _, i2 = c.intersection_circle(c2)
    line = Line(c2.get_center(), i2)

    self.circle    = c
    self.phantom_c = c2.add(Dot(c2.get_center(), z_index=5))
    self.line   = line
    self.add(c, c2, line)


%manim $_RV PracticalExample1

class PracticalExample2(PracticalExample1):
  def construct(self):
    l = self.line
    c = self.circle
    h = RegularPolygon(6, start_angle=0, radius=c.get_radius())

    tmp_circle = self.phantom_c.copy()
    for _ in range(6):
      tmp_circle = tmp_circle.copy()
      tmp_circle.generate_target()
      tmp_circle.target.move_to(l.get_end())
      arc = tmp_circle.target.common_chord_group_partial(c, only_arc=True)
      arc.reverse_points() # Draw in clockwise direction
      arc.set_stroke(width=3)

      self.play(MoveToTarget(tmp_circle))
      self.play(
        Rotate(
          l,
          -arc.angle, # Clockwise rotation
          about_point=l.get_end()
        ),
        Create(arc),
      )
      l.reverse_points() # Invert start and end each step

    self.play(FadeOut(l))
    self.play(Create(h))

    self.wait()

%manim $_RV PracticalExample2
